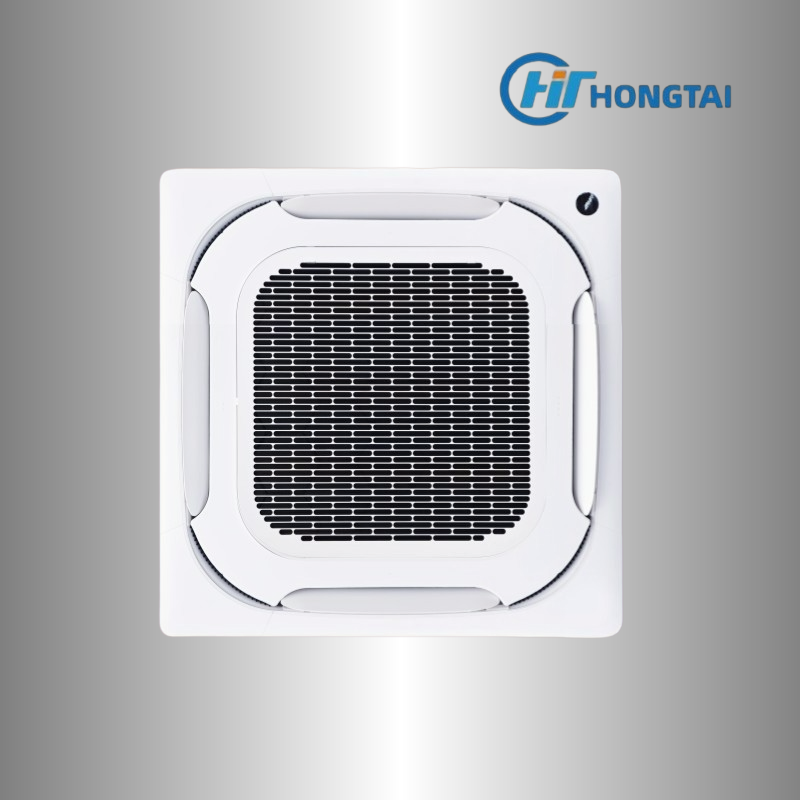

Four-Way Cassette 2.2-14kW Premium Cassette with 3D Airflow and 50Pa Extended Static Pressure
The Four-Way Cassette represents the premium choice for comprehensive climate control in large commercial spaces. With capacities ranging from 2.2 to 14kW and advanced 3D airflow technology, this unit delivers exceptional comfort across commercial environments of all sizes.
360° Airflow with 3D Comfort Technology
Round air discharge ensures uniform temperature distribution throughout the entire room. The 360° airflow design eliminates hot and cold spots for consistent comfort in every corner of your space.
50Pa Extended Static Pressure
Additional static pressure enables long-distance air delivery reaching spaces with ceiling heights up to 4.5 meters. This makes the unit ideal for modern commercial buildings with elevated ceilings.
7 Fan Speeds with Individual Control
Seven fan speed options provide maximum flexibility for different indoor conditions. Individual louver control allows each of the four louvers to be independently adjusted for precise airflow direction.
Soft Wind Mode with Long Distance Delivery
Soft wind mode creates draft-free comfort while maintaining long-distance delivery capabilities, ensuring adequate airflow even in spaces with high or sloped ceilings.
Optional Human Detect Sensor
Millimeter-wave radar sensor detects human presence and automatically adjusts temperature settings to save energy while ensuring optimal comfort when occupants are present.
Ideal Applications
- Large Office Spaces – 3D airflow for uniform comfort distribution
- Shopping Malls – High ceilings accommodated with extended reach
- Conference Centers – Individual control for different zones
- Restaurants – Quiet operation with precise temperature control
- Healthcare Facilities – Reliable performance for patient areas
- Educational Institutions – Comfortable learning environments
Certifications & Standards
Eurovent Certified Performance, ERP Energy Efficiency, RoHS Compliant
Technical Specifications
| Parameter |
Specification |
| Capacity Range |
2.2-14kW |
| Power Supply |
220-240V / 1Ph / 50Hz |
| Sound Pressure Level |
28-44 dB(A) |
| Airflow Rate |
600-2400 m³/h |
| Dimensions (W×H×D) |
840×840×240 mm |
| Net Weight |
21.0-28.0 kg |
| External Static Pressure |
50 Pa |
| Airflow Angles |
30°-65° (5-step) |
