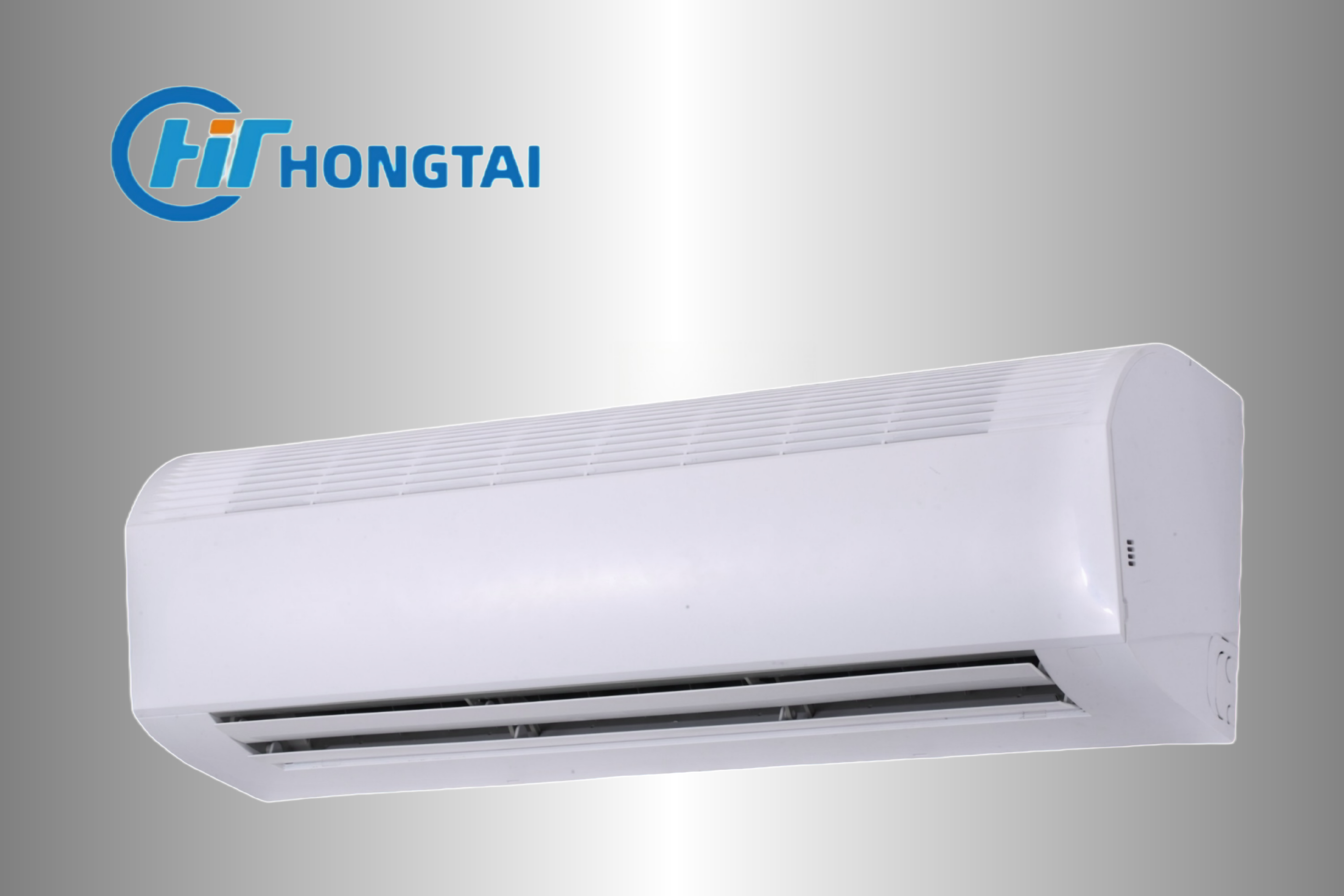

Wall-Mounted 2.2-7.1kW Wall Console Coanda Airflow 27dB
Premium Wall-Mounted Comfort with Smart Features
Product Overview
The Wall-Mounted unit combines premium comfort features with elegant design. With capacities from 2.2-7.1kW and ultra-quiet operation down to 27dB(A), it's ideal for bedrooms, hotel rooms, and residential applications.
The innovative 3D airflow feature allows vertical and horizontal air discharge for more uniform dispersion and temperature distribution. Bi-directional Coanda airflow delivery ensures cold air doesn't blow directly on occupants.
Advanced features include human detect sensor (optional) that automatically adjusts temperature based on occupancy, and ceiling-adjacent mounting with units positioned as close as 3cm from the ceiling for a spacious feel.
Key Features
3D Airflow – Vertical & Horizontal Discharge
The 3D airflow feature allows air discharge in both vertical and horizontal directions, ensuring more uniform dispersion and consistent temperature distribution throughout the room.
Bi-directional Coanda Airflow
With bi-directional Coanda airflow delivery, cold air does not blow directly on people. Hot air warms evenly from floor level for better comfort without drafts.
27dB(A) Ultra-Quiet Operation
Fully-enclosed throttle parts and drain pumps ensure ultra-quiet operation at just 27dB(A), making it ideal for bedrooms and noise-sensitive environments.
Human Detect Sensor (Optional)
Millimeter-wave radar sensor detects human presence/absence and automatically adjusts temperature to save energy while ensuring comfort when needed.
Ceiling-Adjacent Installation
Newly-designed heat exchanger allows high-on-wall installation with units positioned as close as 3cm from the ceiling, creating a sense of additional spaciousness.
Applications
- Bedrooms – Ultra-quiet operation for restful sleep
- Hotel Rooms – Elegant design with premium comfort
- Home Offices – 3D airflow for uniform temperature
- Small Apartments – Space-efficient wall mounting
- Retrofits – Easy installation replacing old units
- Residential Living Areas – Smart features for modern living
Certifications & Standards
- Eurovent Certified Performance
- ERP Energy Efficiency
- RoHS Compliant
Technical Specifications
| Parameter |
Specification |
| Capacity Range |
2.2-7.1kW |
| Power Supply |
220-240V / 1Ph / 50Hz |
| Sound Pressure Level |
27-40 dB(A) |
| Airflow Rate |
500-950 m³/h |
| Dimensions (W×H×D) |
970×300×230 mm |
| Net Weight |
12.0-14.5 kg |
| Drain Pump |
Optional (1200mm lift) |
